OEM PERFORMANCE SERIES


King OEM performance kit custom tuned to provide your Ford with unparalleled levels of performance and ride quality. Each kit has been subjected to punishing real world testing to develop the optimal damping curve and spring rate for your vehicle. Easy bolt-on installation for stock height or custom kits for trucks running lifted aftermarket suspensions.

Content Separator

ford-raptor

OEM - Ford Feature List

Content  Separator

OEM - Ford Feature List

oem_ford_f150_09_13 2WD_4WD1

oem_ford_f150_2014

ford-HD-featuresContent  Separator

OEM - Ford Feature List

Content Separator

OEM - Ford Features

Feature 1 1. Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination. Feature 7 7. The heat treated 6061 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
Feature 2 2. High quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking. Feature 8 8. Wear bands are made from a Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
Feature 3 3. Internally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body. Feature 9 9. Large 3/4" or 7/8" diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
Feature 4 4. 2.5" Shock cylinders are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function. Feature 10 10. High strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long life with no metal to metal contact.
Feature 5 5. Coilover shocks are machined with our own truncated thread design for ultimate strength and trouble free spring preload and height adjustments. Feature 11 11. Aluminum components and vehicle specific mounts are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting brackets and hardware along with detailed installation instructions. Technical support, if needed, is only a phone call or email away.
Feature 5 6. Pinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.

Content Separator

OEM - Ford Series

Part# Description Type Details Weight
25001-315 Ranger 12+ Rear Piggyhose Reservoir    32.00
25001-316 Ranger 12+ Front Remote Reservoir Coilover    64.00
25001-315A Ranger 12+ Rear Piggyhose Reservoir Compression Adjuster  32.00
25001-316A Ranger 12+ Front Remote Reservoir Coilover Compression Adjuster  64.00
25001-315 Ranger 12+ 10+ Front Remote Reservoir Coilover    64.00
30001-401 F150 Raptor 10+ 3" Front Coil Overs Compression Adjuster  51.00
30001-402 F150 Raptor 10+ 3" Bypass Rear Shocks    43.00
25001-168 F150 04-08 2wd Front Coil Overs    58.00
25001-170 F150 04-08 2wd Rear Shocks    31.00

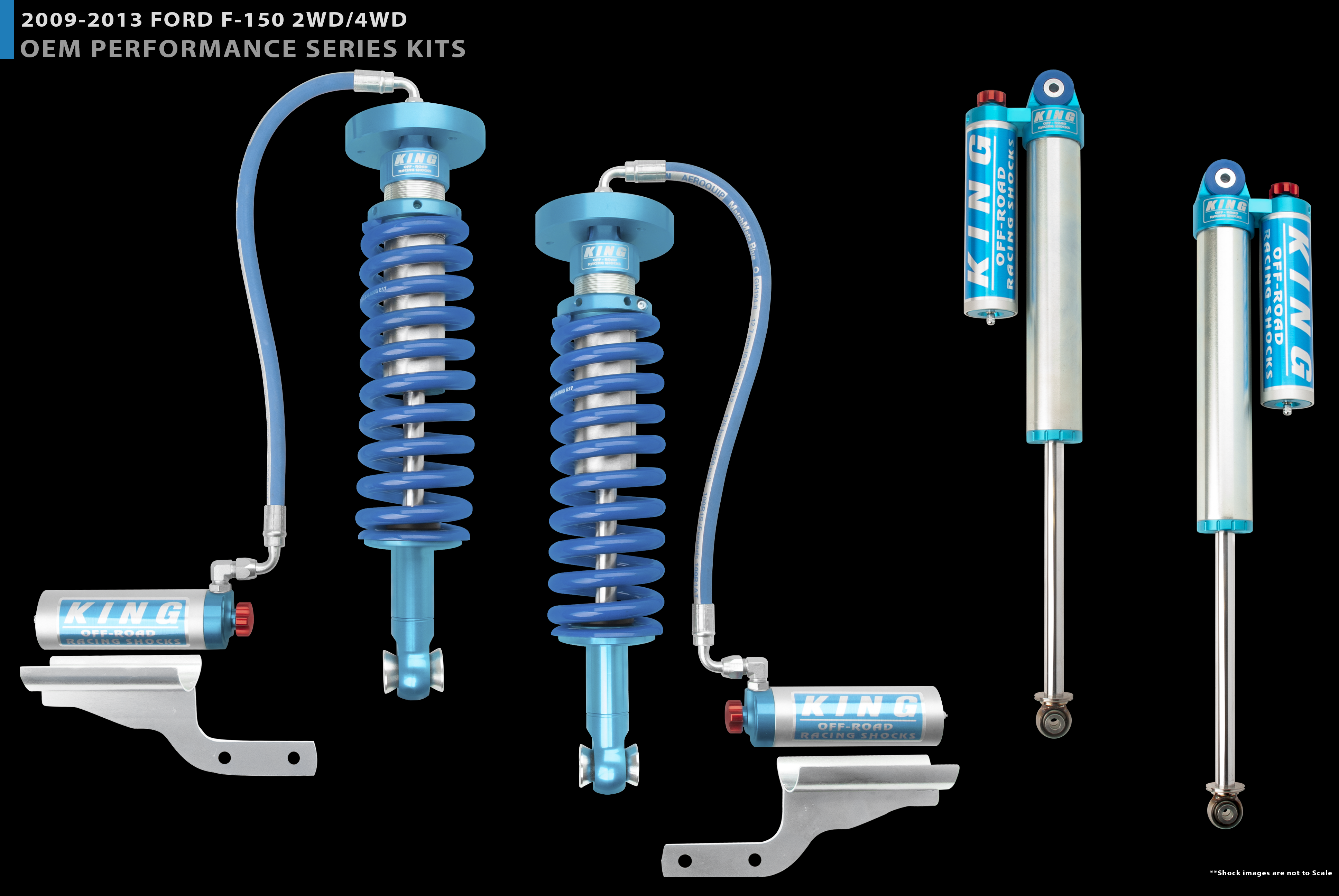

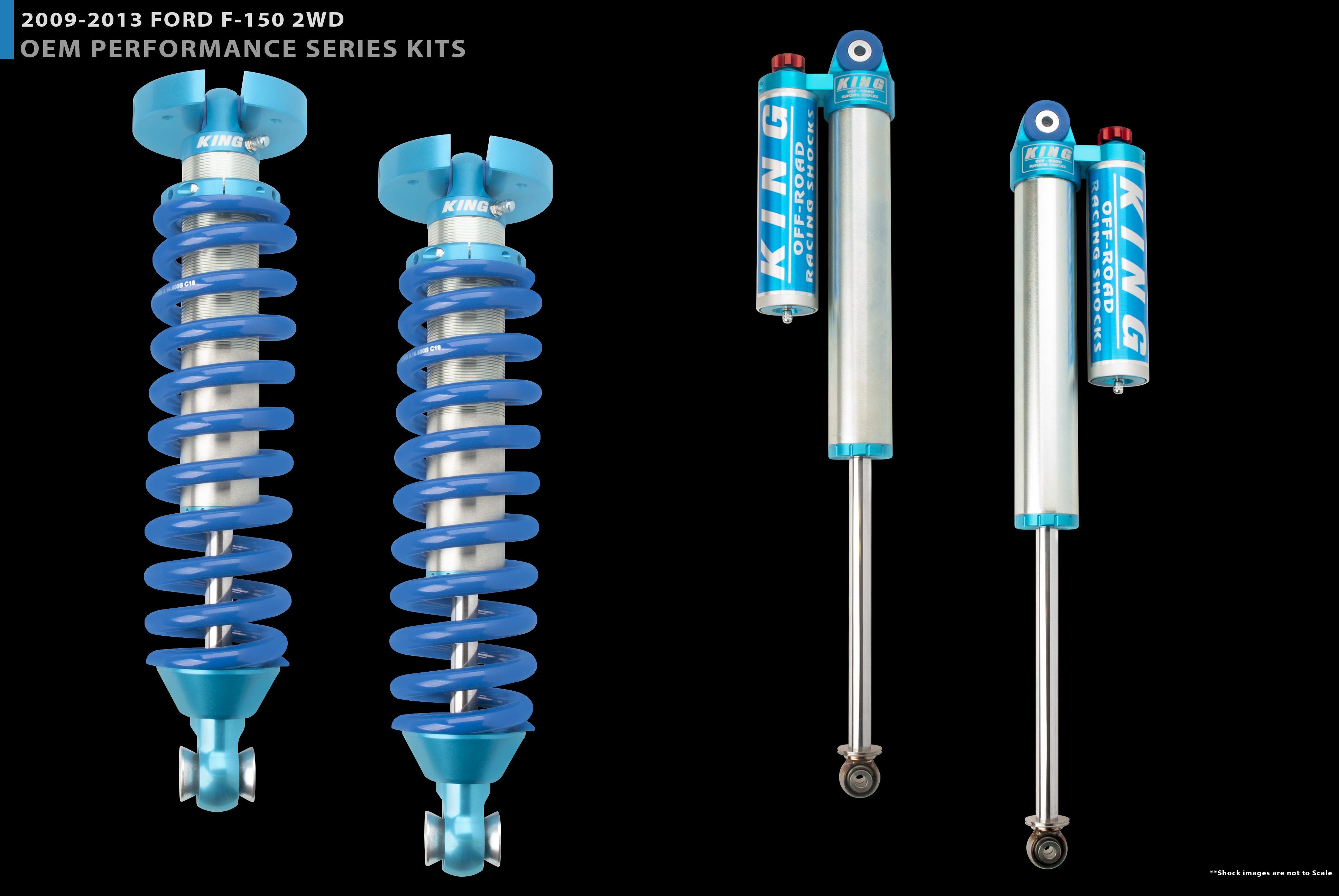

25001-211 F150 09-13 2wd Front Coil Overs    58.00
25001-167 F150 04-08 4wd Front Coil Overs    66.00
25001-169 F150 04-08 4wd Rear Shocks    33.00

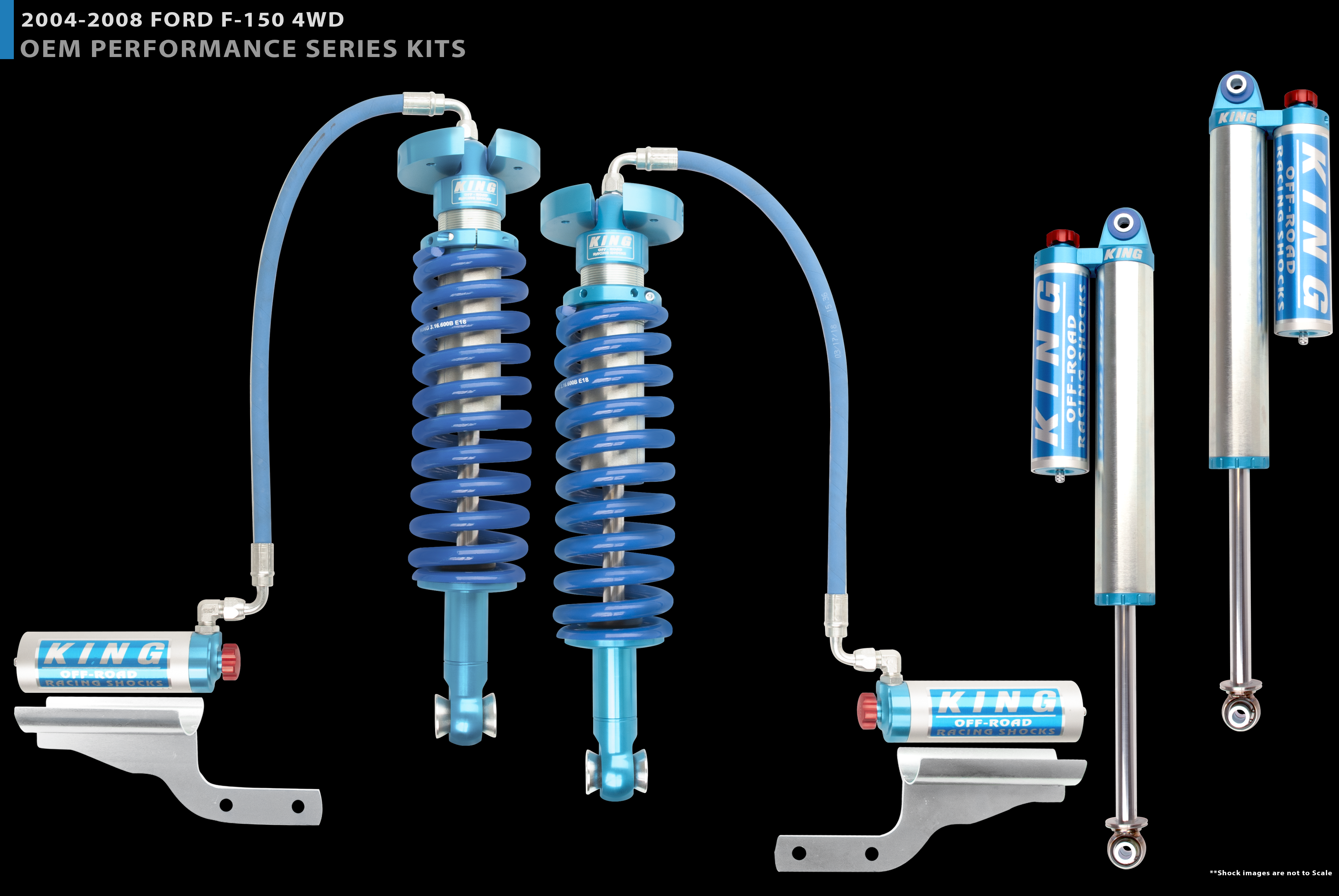

25001-167A F150 04-08 4wd Front Coil Over W/Adjuster
25001-169A F150 04-08 4wd Rear Shocks W/Adjuster
25001-213 F150 09-13 4wd Front Coil Overs    66.00
25001-214 F150 09-13 4wd Rear Shocks    33.00
25001-213A F150 09-13 4wd Front Coil Over W/Adjuster
25001-214A F150 09-13 4wd Rear Shocks W/Adjuster
25001-331 F150 14+ 2wd/4wd Front 2.5 Remote Reservoir Coilover
25001-331A F150 14+ 2wd/4wd Front 2.5 Remote Reservoir Coilover W/Adjuster
25001-136 F250/350 05+ 4wd Front Shocks    35.00
25001-146 F250/350 05+ 4wd Front Coil Over Conversion    65.00
25001-136A F250/350 05+ 4wd Front Shocks Compression Adjuster  35.00
25001-146A F250/350 05+ 4wd Front Coil Over Conversion Compression Adjuster  65.00
25001-171 F250/350 05+ 4wd Rear Shocks    33.00
25001-171A F250/350 05+ 4wd Rear Shocks
