King OEM performance kit custom tuned to provide your GM with unparalleled levels of performance and ride quality. Each kit has been subjected to punishing real world testing to develop the optimal damping curve and spring rate for your vehicle. Easy bolt-on installation for stock height or with custom kits for trucks running lifted aftermarket suspensions.Content Separator 2015_Colorado_2038 2007 + GM 1500 Stage 3 BillBoard- 2007 + CHEVY OEM RACE KIT BLACK                             Content Separator Content   Separator
Feature 1 1. Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination. Feature 7 7. The heat treated 6061 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
Feature 2 2. High quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking. Feature 8 8. Wear bands are made from a Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
Feature 3 3. Internally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body. Feature 9 9. Large 3/4" or 7/8" diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
Feature 4 4. 2.5" Shock cylinders are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function. Feature 10 10. High strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long life with no metal to metal contact.
Feature 5 5. Coilover shocks are machined with our own truncated thread design for ultimate strength and trouble free spring preload and height adjustments. Feature 11 11. Aluminum components and vehicle specific mounts are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting brackets and hardware along with detailed installation instructions. Technical support, if needed, is only a phone call or email away.
Feature 5 6. Pinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.
Content Separator
Part# Description Type Details Weight Lbs Compressed length Extended length
25001-148 GM 1500/Tahoe/Yukon07+ Front Coil Overs 61.00
25001-154 GM 1500 07+ Rear Shocks 30.00
25001-150 Tahoe/Yukon 07+ Rear Shocks 30.00
25001-184 GM 2500/3500HD 01+ Front Shocks
25001-201 GM 2500/3500HD 01+ Rear Shocks

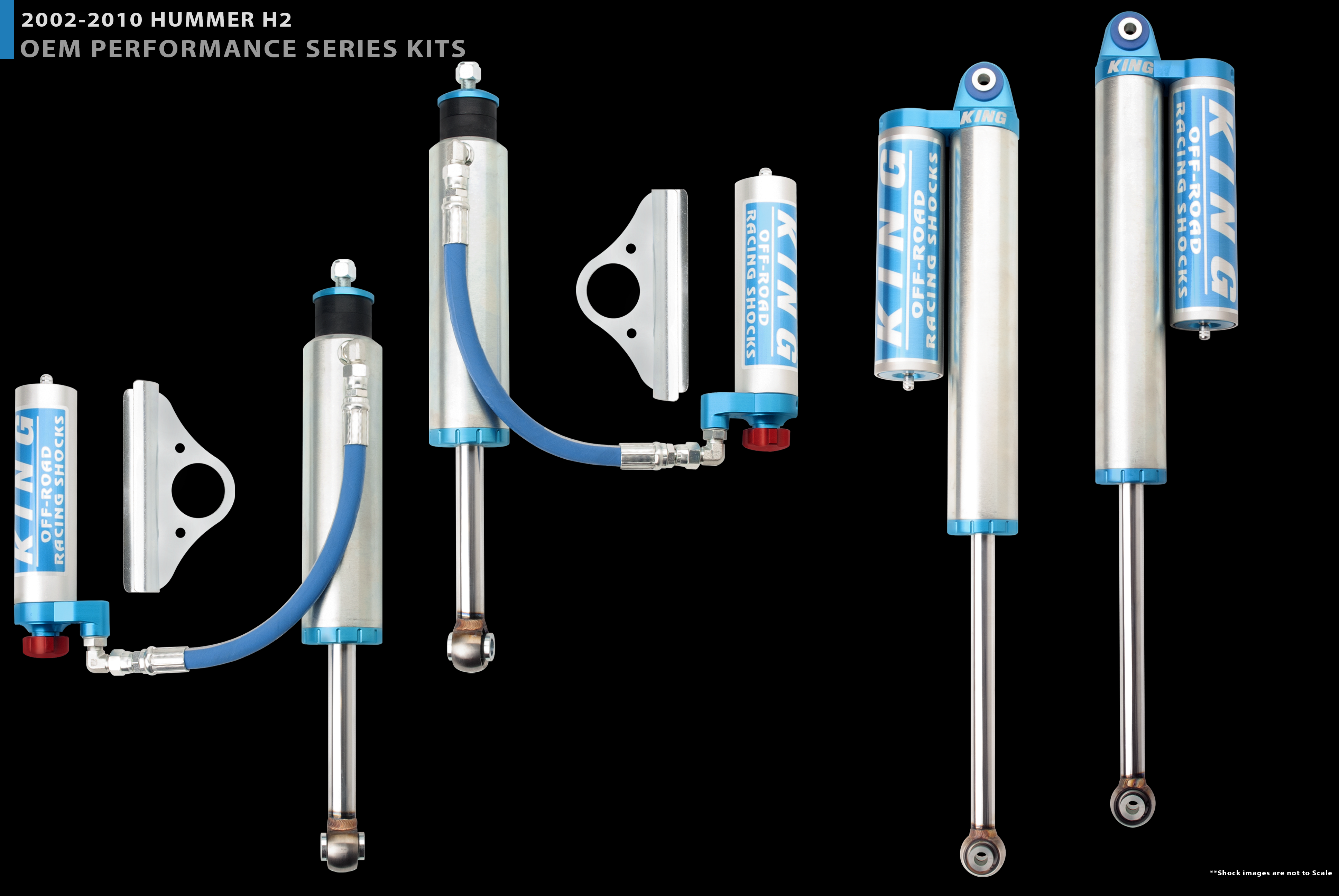

25001-270 Hummer H2 03+ Front Shocks
25001-271 Hummer H2 03+ Rear Shocks
33001-201 Silverado 1500 07+ Stage 3 Race Kit 3.0 Front Remote Reservoir Coilover W/ Adjuster Compression Adjuster
33001-202 Silverado 1500 07+  Stage 3 Race Kit 3.0 -  3 Tube Rear Remote Reservoir

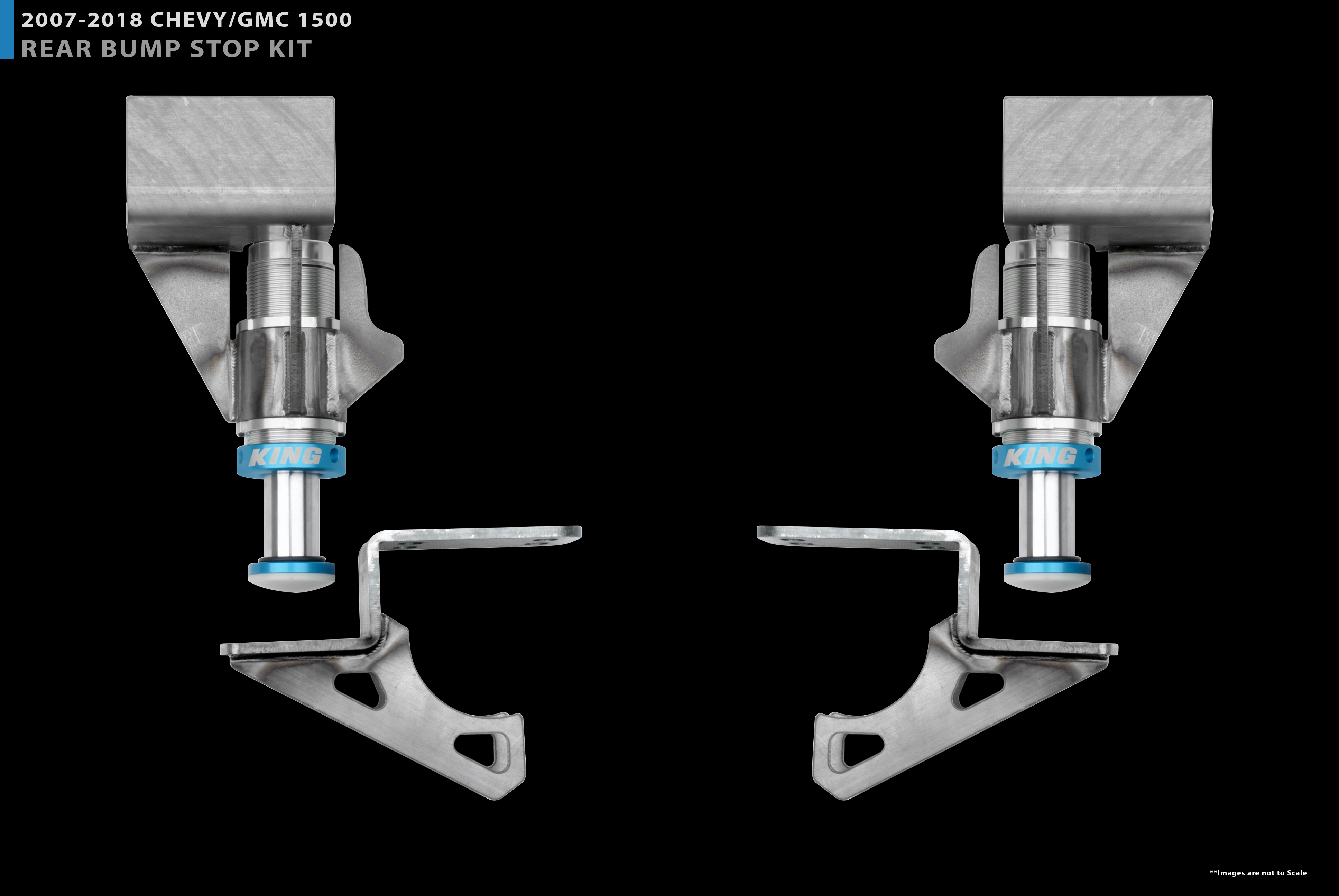

20AB001-100 Silverado 1500 07+ Rear 2.0 compact Bump Stop Kit
SPR1001 Silverado 1500 07+ Rear Leaf Spring
25001-337 Colorado 15+ 2.5 Remote Reservoir Front Coil Overs Remote Reservoir
25001-338 Colorado 15+ 2.5 Piggyback Reservoir Rear Shocks
25001-337A Colorado 15+ 2.5 Remote Reservoir Front Coil Overs Compression Adjuster
25001-338A Colorado 15+ 2.5Piggyback Reservoir Rear Shocks Compression Adjuster
