OEM PERFORMANCE SERIES


King OEM performance kit custom tuned to provide your Nissan with unparalleled levels of performance and ride quality. Each kit has been subjected to punishing real world testing to develop the optimal damping curve and spring rate for your vehicle. Easy bolt-on installation for stock height or custom kits for trucks running lifted aftermarket suspensions.

Content Separator

OEM - Nissan Feature List

Content Separator

Nissan Patrol

OEM_Nissan_Patrol_kits

OEM - Nissan Features

Feature 1 1. Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination. Feature 7 7. The heat treated 6061 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
Feature 2 2. High quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking. Feature 8 8. Wear bands are made from a Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
Feature 3 3. Internally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body. Feature 9 9. Large 3/4” or 7/8” diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
Feature 4 4. 2.5” Shock cylinders are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function. Feature 10 10. High strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long life with no metal to metal contact.
Feature 5 5. Coilover shocks are machined with our own truncated thread design for ultimate strength and trouble free spring preload and height adjustments. Feature 11 11. Aluminum components and vehicle specific mounts are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting brackets and hardware along with detailed installation instructions. Technical support, if needed, is only a phone call or email away.
Feature 5 6. Pinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.

Content Separator

OEM - Nissan Series



NISSAN

FRONTIER

25001-111

FRONTIER 05+ FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER

25001-110

FRONTIER 05+ REAR 2.5  DIA. PIGGY HOSE RESERVOIR SHOCK



25001-111A

FRONTIER 05+ FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER W/ ADJUSTER

25001-110A

FRONTIER 05+ REAR 2.5 DIA. PIGGY HOSE RESERVOIR SHOCK W/ ADJUSTER


PATROL Y61

20C001-202

PATROL Y61 97+ FRONT 2.0 DIA. STEERING STABILIZER

25001-137

PATROL Y61 97+ FRONT 2.5 DIA. SHOCK, REMOTE 2.0 RES FOR 6" LIFTS

25001-155

PATROL Y61 97+ REAR 2.5 DIA. SHOCK, REMOTE 2.0 RES FOR 6" LIFTS

25001-137A

PATROL Y61 97+ FRONT 2.5 SHOCK 2.0 DIA. REMOTE RES FOR 6" LIFTS W/ ADJUSTER

25001-155A

PATROL Y61 97+ REAR 2.5 DIA.SHOCK, REMOTE 2.0 RES FOR 6" LIFTS W/ ADJUSTER

25001-158

PATROL Y61 97+ FRONT 2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 0-2.0" LIFTS

25001-159

PATROL Y61 97+ REAR 2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 0-2.0" LIFTS

25001-164

PATROL Y61 97+ FRONT 2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 3-5" LIFTS

25001-165

PATROL Y61 97+ REAR  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 3-5" LIFTS

25001-172

PATROL Y61 97+ FRONT  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 6" LIFTS

25001-173

PATROL Y61 97+ REAR  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 6" LIFTS

25001-158A

PATROL Y61 97+ FRONT  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 0-2.0" LIFTS W/ ADJUSTER

25001-159A

PATROL Y61 97+ REAR  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 0-2.0" LIFTS W/ ADJUSTER

25001-164A

PATROL Y61 97+ FRONT  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 3-5" LIFTS W/ ADJUSTER

25001-165A

PATROL Y61 97+ REAR  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 3-5" LIFTS W/ ADJUSTER

25001-172A

PATROL Y61 97+ FRONT  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 6" LIFTS W/ ADJUSTER

25001-173A

PATROL Y61 97+ REAR  2.5 DIA. SHOCK, REMOTE 2.5 RES FOR 6" LIFTS W/ ADJUSTER

25001-365

PATROL Y61 97+ FRONT 2.5 DIA. 2 TUBE REMOTE RES. BYPASS SHOCK FOR 0-2.0" LIFTS

25001-366

PATROL Y61 97+ REAR 2.5 DIA. 2 TUBE REMOTE RES. BYPASS SHOCK FOR 0-2.0" LIFTS

33001-203

PATROL Y61 97+ FRONT 3.0 DIA. REMOTE RES SHOCK FOR 0-2.0" LIFTS (VEHICLE NEEDS TO BE MODIFIED, NOT DIRECT BOLT IN)

33001-204

PATROL Y61 97+ REAR 3.0 DIA. REMOTE RES SHOCK FOR 0-2.0" LIFTS (VEHICLE NEEDS TO BE MODIFIED, NOT DIRECT BOLT IN)

33001-203A

PATROL Y61 97+ FRONT 3.0 DIA. REMOTE RES SHOCK FOR 0-2.0" LIFTS W/ ADJUSTER (VEHICLE NEEDS TO BE MODIFIED, NOT DIRECT BOLT IN)

33001-204A

PATROL Y61 97+ REAR 3.0 DIA. REMOTE RES SHOCK FOR 0-2.0" LIFTS W/ ADJUSTER (VEHICLE NEEDS TO BE MODIFIED, NOT DIRECT BOLT IN)
PATROL Y62

25001-323

PATROL Y62 10+ FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER

25001-324

PATROL Y62 10+ REAR 2.5 DIA. PIGGY HOSE RESERVOIR SHOCK



25001-323A

PATROL Y62 10+ FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER W/ ADJUSTER

25001-324A

PATROL Y62 10+ REAR 2.5 DIA. PIGGY HOSE RESERVOIR SHOCK W/ ADJUSTER

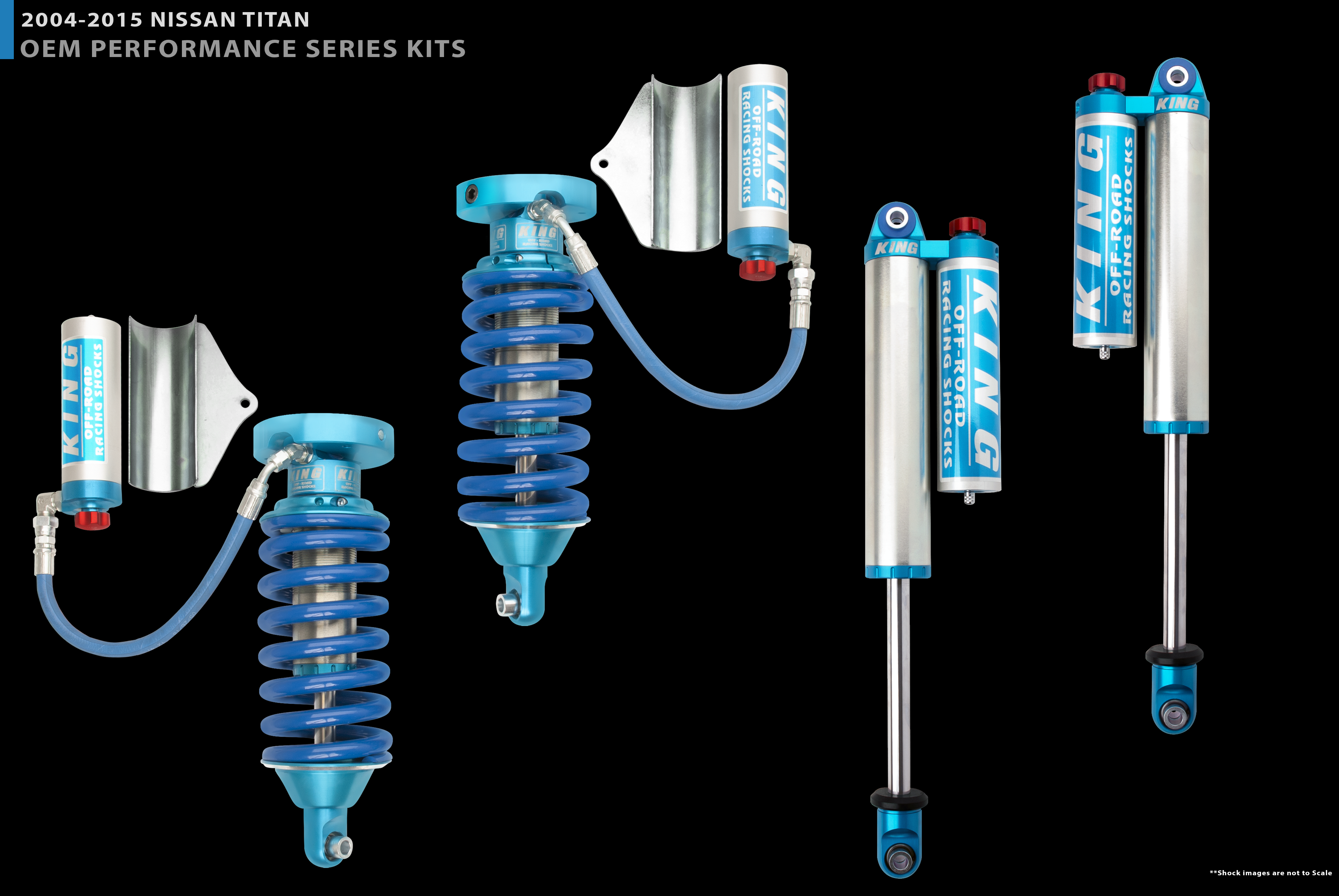

TITAN

25001-139

TITAN 04-15 FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER

25001-142

TITAN 04-15 REAR 2.5 DIA. PIGGYBACK RESERVOIR  SHOCK



25001-139A

TITAN 04-15 FRONT 2.5 DIA. REMOTE RESERVOIR COIL-OVER W/ ADJUSTER

25001-142A

TITAN 04-15 REAR 2.5 DIA. PIGGYBACK RESERVOIR  SHOCK W/ ADJUSTER
