UTV

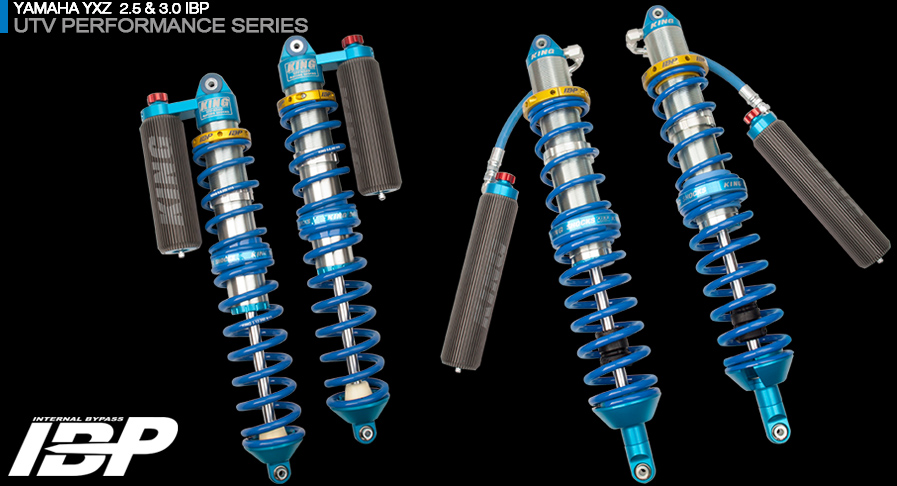

Yamaha YXZ IBP KIT Blk Web

King Shocks custom tuned, UTV performance shock kit gives your Yamaha Rhino and YXZ unparalleled levels of performance and ride quality. Each side x side shock kit was developed with punishing real world testing to develop the optimal damping curve and spring rate. UTV shock kits available for stock height or long travel aftermarket suspensions provide easy bolt-on installation and adjustable ride height.

Content Separator

Content Separator

UTV Performance Series - Yamaha Image

UTV Performance Series - Yamaha Feature List

Content Separator

UTV Performance Series - Yamaha Features

Feature 1 1. Beautifully anodized aircraft quality billet aluminum construction.. Feature 7 7. Large 3/4” diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
Feature 2 2. Clearly marked, ergonomic knob design is easy to use even while wearing gloves. Feature 8 8. Shock cylinders are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function.
Feature 3 3. Individual detents make each click of adjustment easy to feel while turning. Each of the twenty levels of adjustment offers precise compression damping control ranging from very soft to very firm. Feature 9 9. Bolt on installation available in stock lengths or extended versions for long travel suspensions.
Feature 5 4. Wide range compression adjuster can be retro-fitted to existing King Shocks. Feature 10 10. Integrated piggyback style mounted light weight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination.
Feature 5 5. Reservoir mount bolts securely to the shock and includes a quad sealed fluid transfer tube. Feature 11 11. Urethane foam bump stop included to cushion when bottoming.
Feature 6 6. Machined with our own truncated thread design for ultimate strength and trouble free spring preload and ride height adjustments. Feature 12 12. Aluminum components are machined from aircraft quality billet. Steel Teflon lined spherical bearings for smooth articulation and long life with no metal to metal contact.

Content Separator

UTV Performance Series - Yamaha Series

YAMAHA

Part# Description Type Details Weight Compressed length Extended length
20001-192 Rhino Front Coil Over 30 11.675 15.605
20001-193 Rhino Rear Coil Over 30 12.564 15.498
20001-194 Rhino 4 Seat Rear Coil Over 30 12.564 15.498
20001-192A Rhino Front Coil Over Compression Adjuster 30 11.675 15.605
20001-193A Rhino Rear Coil Over Compression Adjuster 30 12.564 15.498
20001-194A Rhino 4 Seat Rear Coil Over Compression Adjuster 30 12.564 15.498
25700-349A YXZ 1000R 2016+ 2.5 Front Piggyback Coil Over Internal Bypass Compression Adjuster
33700-101A YXZ 1000R 2016+ 3.0 Rear Hose Remote Coil Over Internal Bypass Compression Adjuster
25700-349AF YXZ 1000R 2016+ 2.5 Front Piggyback Coil Over Internal Bypass W/Finned Reservoir Compression Adjuster
33700-101AF YXZ 1000R 2016+ 3.0 Rear Hose Remote Coil Over Internal Bypass W/Finned Reservoir Compression Adjuster
